Truerc X²-AIR 5.8Ghz MK II Antenna Combo Kit For DJI Goggles W/ Singularity Stubby Antennas – LHCP

Description
TrueRC X²-AIR 5.8GHz MK II Antenna Combo Kit for DJI Goggles w/ Singularity Stubby Antennas – LHCP

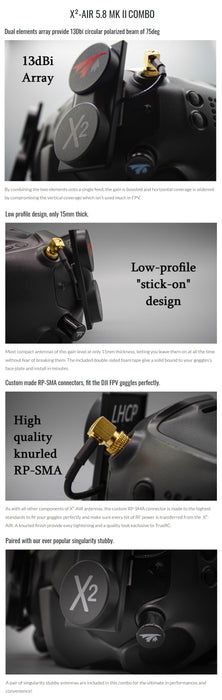

Introducing… the TrueRC X²-AIR 5.8GHz MK II Antenna Combo Kit! More gain and more convenience! This is the adaptation of the all-mighty X²-AIR into a slick low profile face mount for the DJI goggles. Simply peel the included adhesive, stick them on and throw your goggles in your bag ready for a day of flying. Improved 13dBic gain and a massive combined beamwidth of 180deg yield an amazing flight experience in the toughest conditions. Fill the remaining ports with a pair of included Singularity Stubby antennas and performances have never been so convenient!

Features
Highly compact stubby antennas for combined directional and omnidirectional coverage
Super wide 150-degree beam for each antenna combining to 180deg beam width
Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
Compact low-profile design on your goggles, easy to store and transport
High 13 dBic for unsurpassed long-range and signal penetration

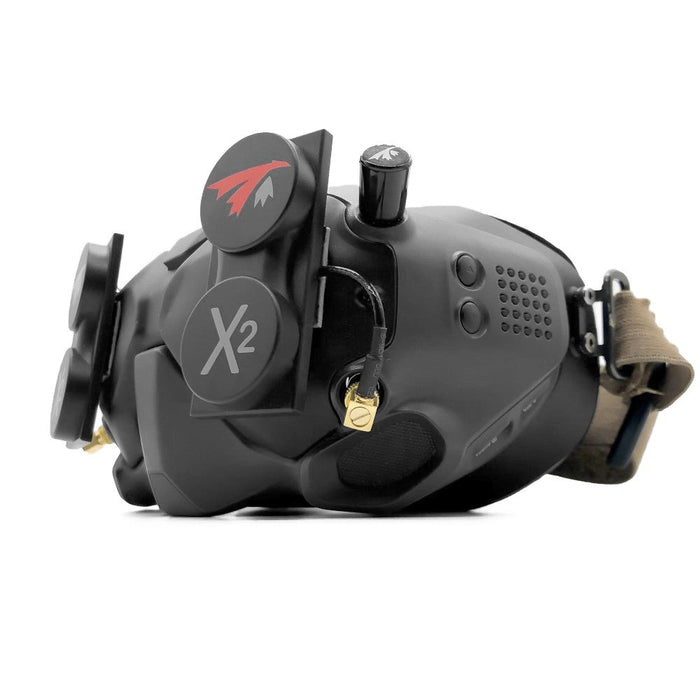

Mount direct on DJI faceplate with included adhesive backing
Sector type beam shape (widest on horizontal)
Custom knurled RP-SMA connectors
Circularly Polarized

Specifications
X²-AIR 5.8GHZ MKII
Connector: Custom knurled RP-SMA
Dimension: 72mm x 34mm x 15mm
Horizontal beam @-3dB**: 75°
Beam-width Horizontal*: 150°
Bandwidth: 5.1GHz-7.0GHz
Vertical beam @-3dB**: 34°
Beam-width Vertical*: 62°
Polarization: LHCP
Weight: 20g each
Gain: 13 dBic

SINGULARITY STUBBY
Polarization: LHCP (Stock DJI is LHCP)
Cross-Polar Rejection: -15 to -30dB (1.9%)
Bandwidth: 5.6GHz-6.0GHz
Radiation Efficiency: 99%
Size: 12.7mm x 20mm
Connector: RP-SMA
SWR: <=1.5:1
Weight: 3.7 g
Gain: 1.9dbic

*Coverage of individual antenna where reception is at least equivalent to an Omni.
**Coverage of individual antenna where at least 70% of the max range is obtained.
U.S. Pat. 10,804,618
Can. Pat. 2968566
3D PRINT FILES
True-SMA Thumbwheel

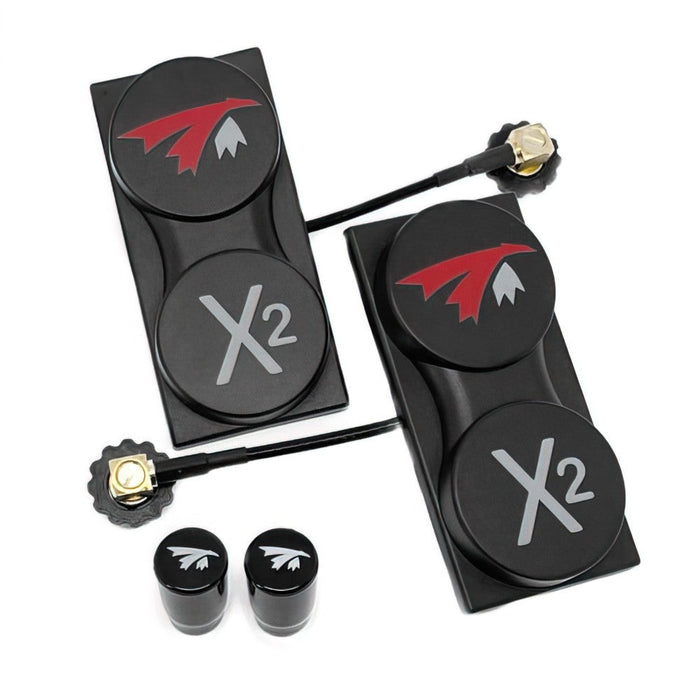

Includes
2x TrueRC X²-Air MKII Antenna (one for each side).
2x TrueRC Singularity Stubby Antenna
Note: Goggles are Not Included.

Additional Information
Weight: 100 g
