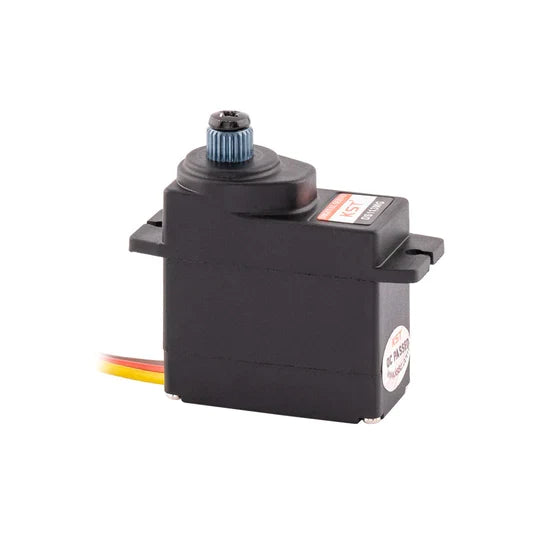

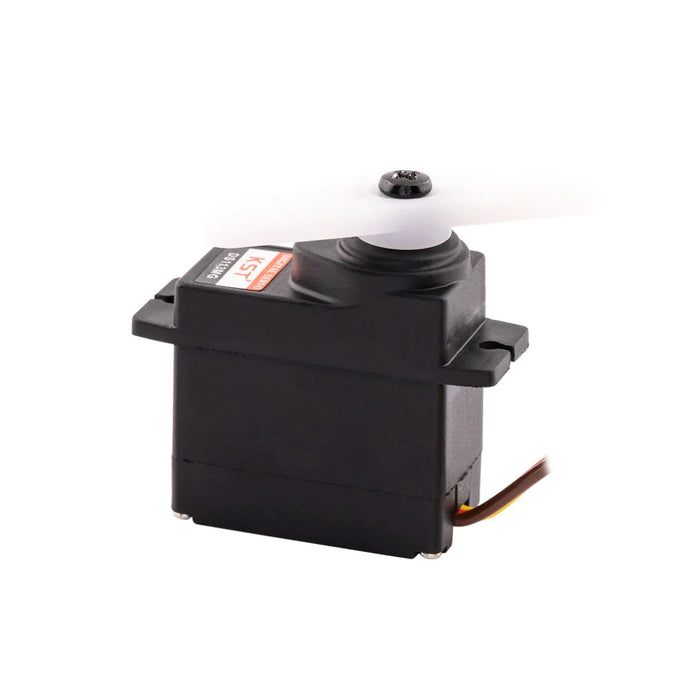

KST SERVO DS113MG

Features

• High Quality and Competitive Price
• Support for 4.8V-8.4V Voltages
• Programmable
• Excellent Heat Dissipation
• Compact and Lightweight Design
• Ultra High Torque & Excellent Speed
• Ideal for Small-size Electric RC Plane and Glider Fuselage

Specification

• Item: DS113MG V6.0 Digital Metal Gear Servo
• Rated Voltage: DC6.0V
• Voltage Range: DC4.8V-8.4V
• Torque: 2.0Kgf.cm@4.8V / 2.5Kgf.cm@6.0V / 3.0Kgf.cm@7.4V / 3.5Kgf.cm@8.4V
• Speed: 0.13sec/60°@4.8V / 0.11sec/60°@6.0V / 0.10sec/60°@7.4V / 0.09sec/60°@8.4V
• Stalling Current: 1.00A@4.8V / 1.20A@6.0V / 1.40A@7.4V / 1.60A@8.4V
• Working Frequency: 1520μs/333Hz
• Default Travel Angle: ±50°=100° Total
• Temperature Range: -10℃.......+65℃
• Soft Start: Programmable
• Programmable: Yes
• Motor Type: Core Motor
• Case Material: Plastic
• Gear Set Material: Metal Gear
• Position Sensor: Potentiometer
• Ball Bearing: 1BB
• Case Dimensions: 24mm*12mm* 26.3mm±0.2mm
• Weight: 12g±10%

Package Including

• 1 * DS113MG V6.0 Micro Servo
• 3 * Plastic Servo Horn
• 1 * Servo Horn Screw
• 4 * Mounting Screw
