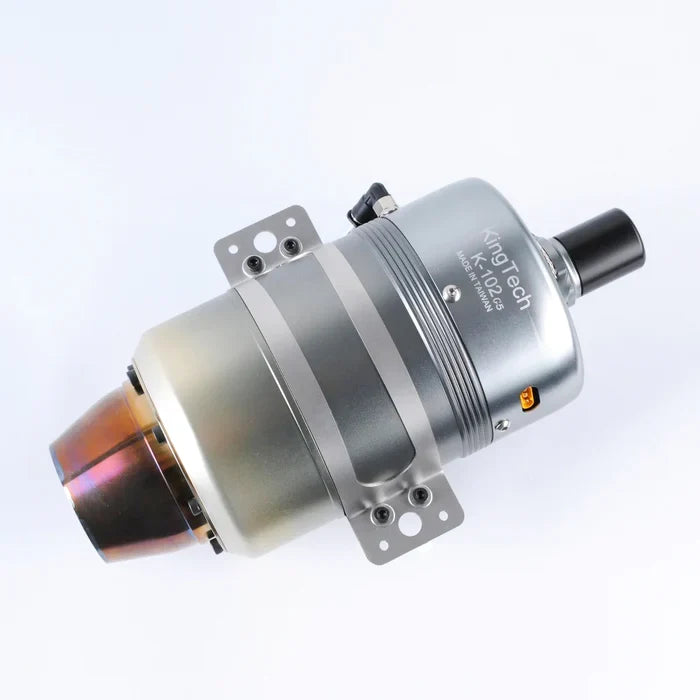

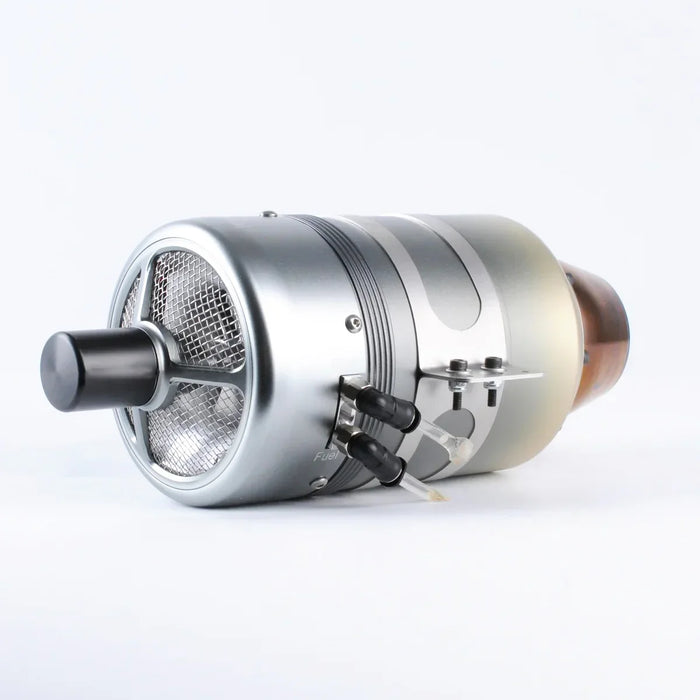

KINGTECH K102G5 TURBINE ENGINE 10KG THRUST K 102 G5

Introducing the KINGTECH K102G5 TURBINE ENGINE, delivering an impressive 10KG of thrust. With its advanced technology and precise construction, this engine provides optimal performance for your aircraft. Trust in the power and reliability of the K102G5, perfect for any aviation enthusiast.

K-102G5 SPECIFICATIONS
Diameter: 84mm / 3.30"

Length: 203.3mm / 8"

Weight: 910g / 2lb

Maximum RPM: 160000

Thrust: 10kg @ 15°C. / 22lb @ 59°F

EGT: 750°C max

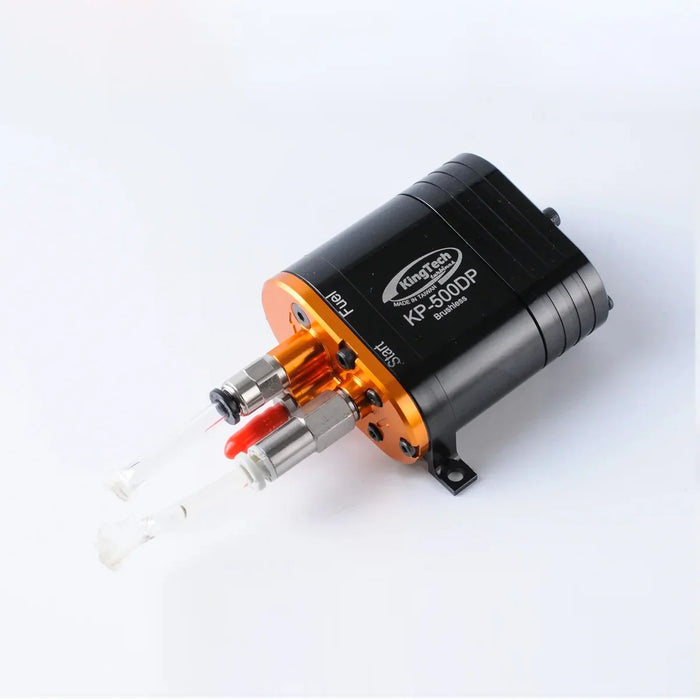

Pump Type: Digital Sbus brushless pump KP500DP

Battery: 11.1V Lipo ( At least 2200mah 35C )

Start Time: 10-15 seconds

Fuel consumption: 330g / min ( 11.64oz )

Fuel: Diesel, Jet A1, Kerosene

Lubrication: 5%

Maintenance cycle: 25 hr US$300

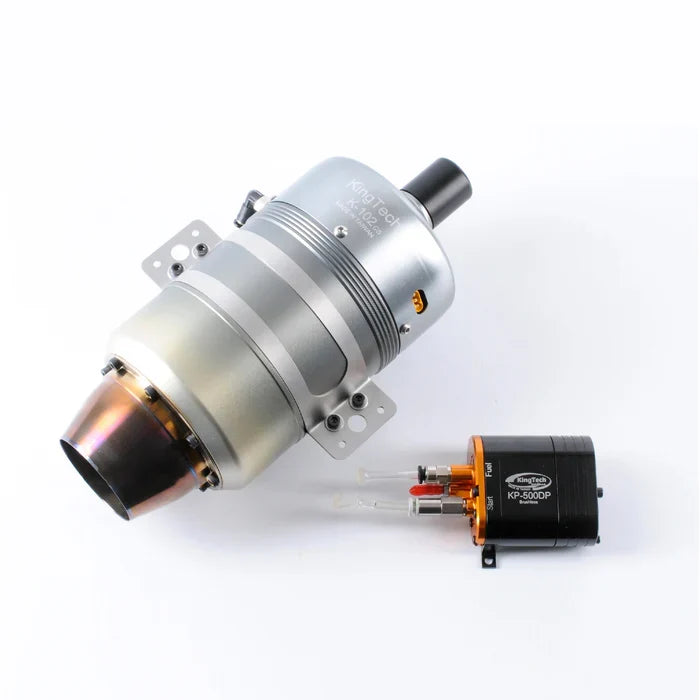

G5 MODEL COMPONENTS LIST
• Engine

• Data Relay Module (DRM)

• Ground Support Unit (GSU)

• Digital Sbus brushless pump KP500DP

• Wire Harness and Tubing Set

• Fuel Pump, Filter and Shout-off Valve

• Fuel Inlet Attachments

• Instruction Manual
