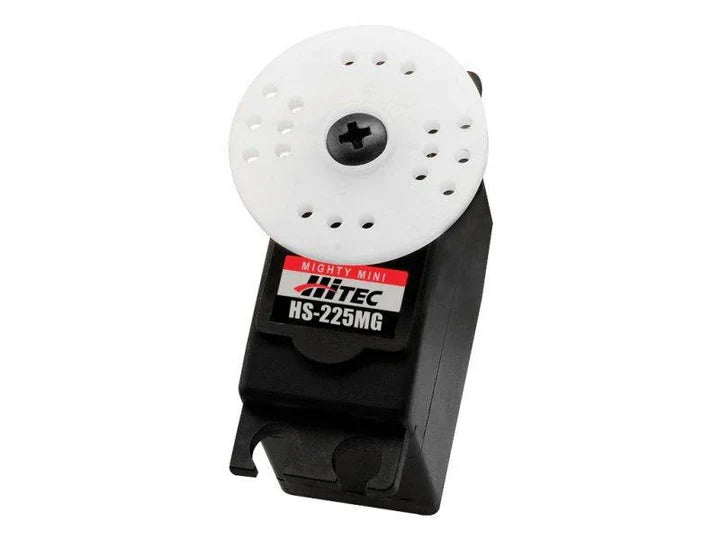

Hitec HS-225MG Metal Gear Mighty Mini Servo

Product Description

The analog HS-225MG represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servo, the HS-225MG high performance mini servo features a top ball bearing and is built with state-of-the-art SMT technology.

Features
Full Size Performance in a Mini Package
Durable Metal Gears
Top Ball Bearings
Perfect for Applications Requiring a Small, Lightweight, High Speed, High Torque Servo

Specifications

• Performance Specifications
• Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
• Speed (Second @ 60°) 0.14 ~ 0.11

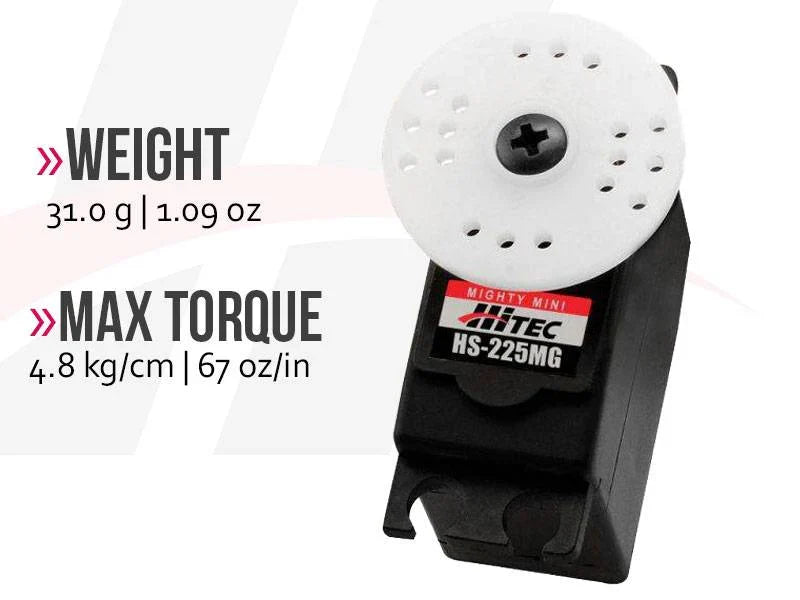

• Maximum Torque Range oz. / in. 54 ~ 67
• Maximum Torque Range kg. / cm. 3.9 ~ 4.8
• Current Draw at Idle 8 mA
• No Load Operating Current Draw 300 mA
• Stall Current Draw 1,200 mA
• Dead Band Width 8 µs
• Physical Specifications

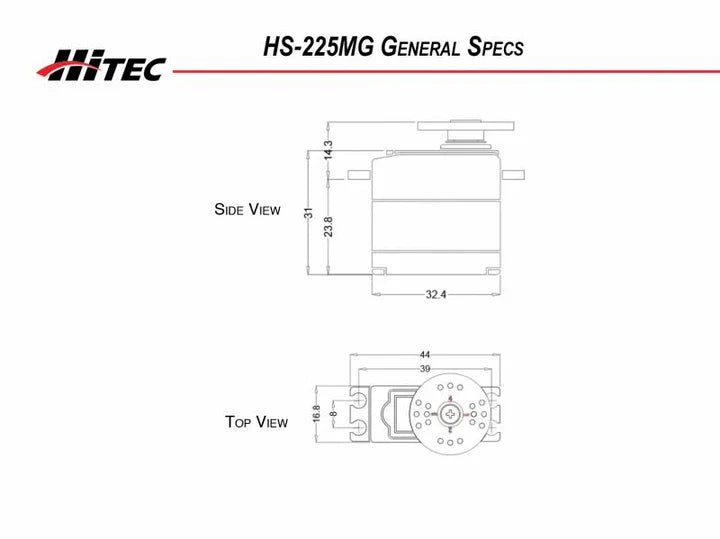

• Dimensions (Inches) 1.27 x 0.66 x 1.22
• Dimensions (Metric) 32.4 x 16.8 x 31.0
• Weight (Ounces) 1.09
• Weight (Gram) 31.0
• Circuit Type HT7003 Analog SMT
• Motor Type 3 Pole Metal Brush Ferrite
• Gear Material Metal
• Bearing Type Top Ball Bearing
• Output Shaft (type / Ømm) Standard 24
• Case Material Plastic
• Dust / Water Resistance N / A
• Connector Gauge (AWG) / Strand Count 25 / 40
