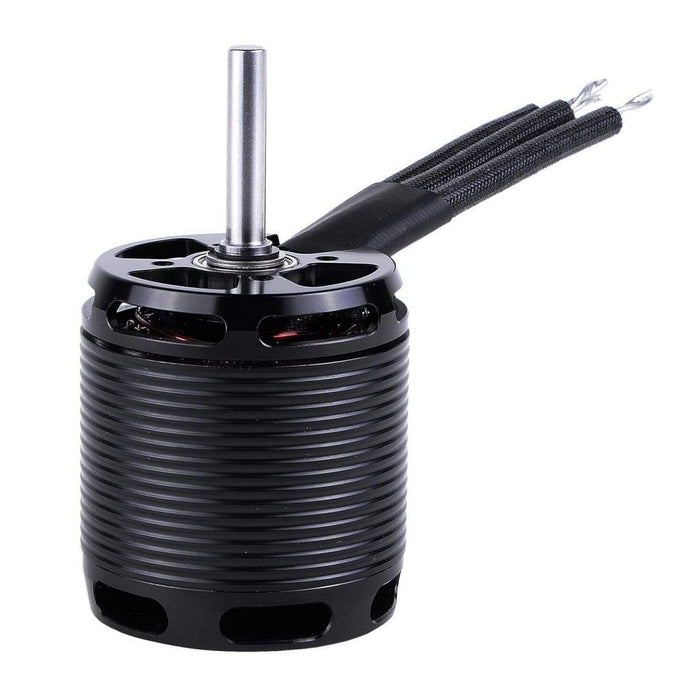

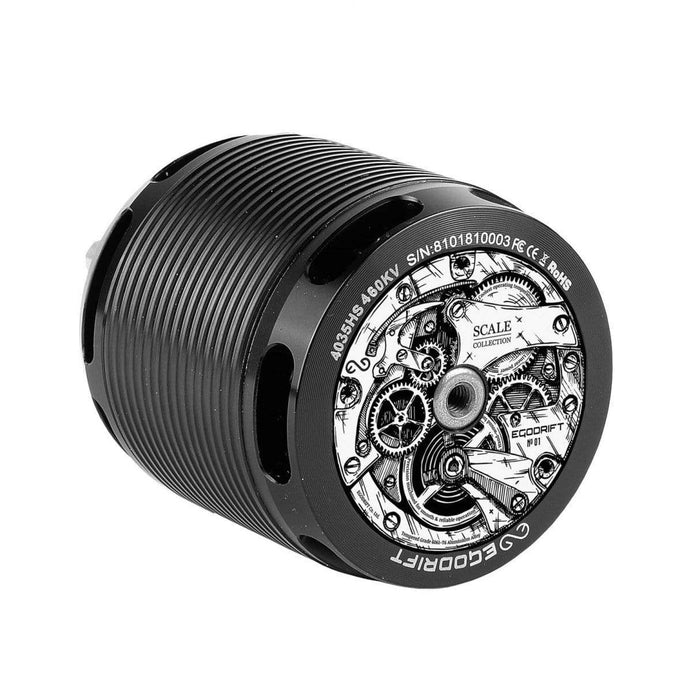

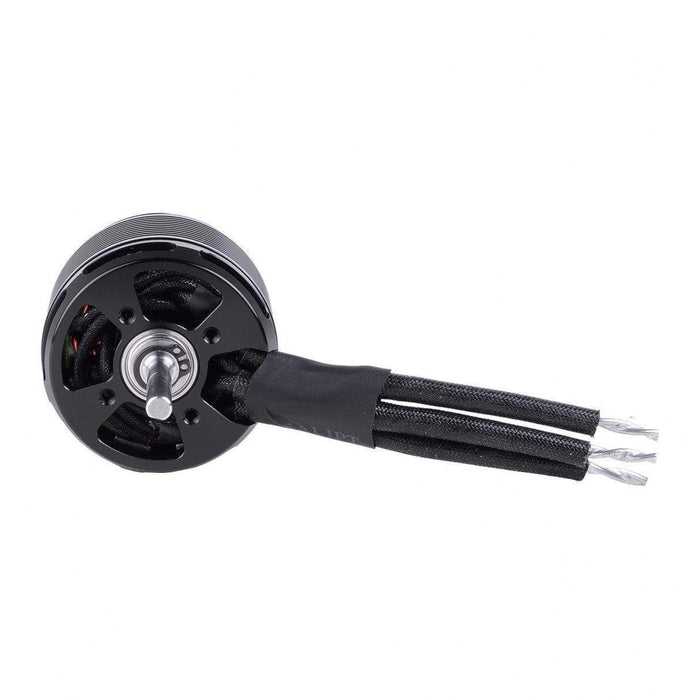

EGODRIFT SCALE COLLECTION 4035HS / 460KV MOTOR (6X40)

The 4035 stator size delivers a perfect balance of power, weight and efficiency, while being easy to integrate due to it's slim dimensions. Perfect for the HSM800 mechanics and Supercale Series by Scaleflying and operation on 12S
Also suited for up to 1.8m sized models, the Vario range and other 1:8, 1:7 and 1:6 models (as an alternative to 4525)..
Each motor comes with gold connectors, mounting screws and an (optional) screw for additional securing of the bell.

SPECIFICATIONS
•    Manufacturer: EGODRIFT
•    Stator size: 4035
•    Motor configuration: 12N10P
•    Motor weight: 419g (14.779 oz)
•    Base Colour: Black
•    Wire colour: Copper
•    Motor wire type: High temperature copper wire
•    Motor wire: 1.2mm
•    Motor shaft: Hardened Steel
•    Shaft diameter: 6.0 mm
•    External shaft length (mm): 40mm (Scale, F3C, oxy5)
•    LiPo cells: 12S
•    Motor kV: 460 kV
•    Stator diameter: 40 mm
•    Stator height: 35 mm
•    Stator lamination: 0.15 mm (+)
•    Body Length: 60mm (2.36 inch)
•    Diameter: 49.6mm (1.95 inch)
•    Screw hole diameter: 3,0 mm
•    Motor hole pattern: 25mm, 30mm
•    Idle current: 3.6A
•    Maximum Current: 75A (Peak: 96A / 2 seconds)
•    Maximum Power: 3500 W (Peak: 4408W / 2 seconds)
•    Internal resistance: 37 mOhm
•    Connection: Wire / Gold plated plugs
