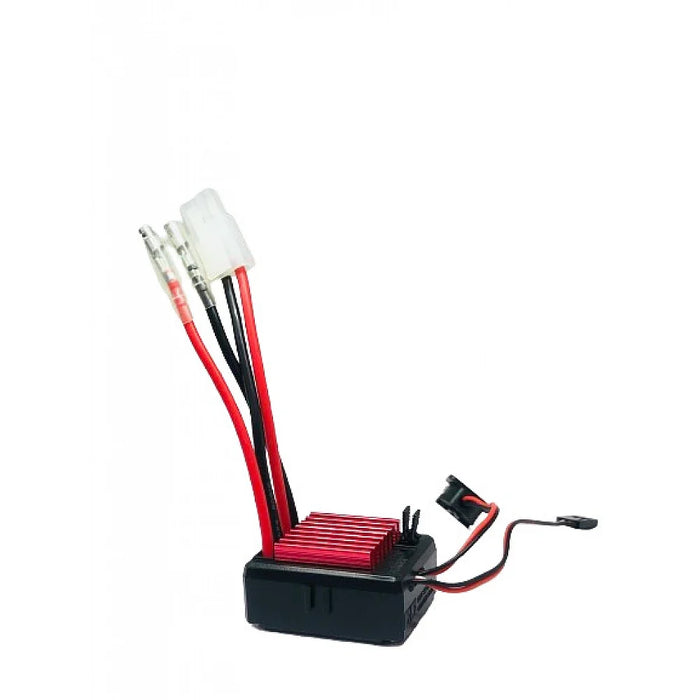

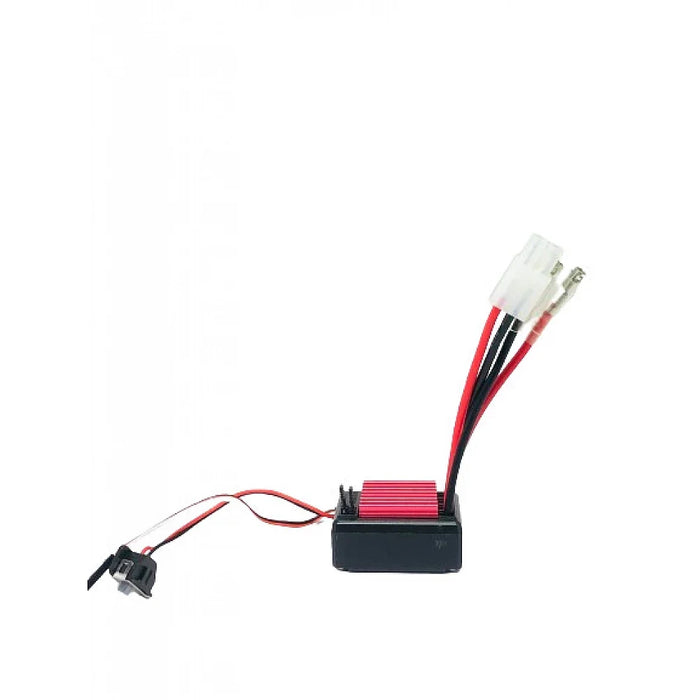

BRUSH X60 RTR 60A ESC 2-3LIPO 5-9NIMI BEC 6V/2A

Enhance the performance and reliability of your RC vehicle with the Brush-X60 Waterproof 60A Electronic Speed Controller (ESC). Designed for 1/10 scale RC cars, buggies, short-course trucks, monster trucks, crawlers, and tanks, this ESC delivers smooth throttle response, dependable power handling, and waterproof protection for a variety of driving conditions.

Supporting both LiPo and NiMH batteries, the Brush-X60 features forward/reverse operation and a dedicated crawler mode, making it suitable for high-speed driving as well as technical crawling applications.

Features

• 60A Continuous Forward Current / 360A Burst Current
• 30A Continuous Reverse Current / 180A Burst Current
• Compatible with 2–3S LiPo and 5–9 Cell NiMH Batteries
• Waterproof Design for enhanced durability
• Forward & Reverse Driving Modes
• Dedicated Crawler Mode for improved low-speed control
• Built-in 6V/2A BEC Output
• Suitable for 1/10 Scale Touring Cars, Buggies, Short-Course Trucks, Monster Trucks, Crawlers, and Tanks
• Compact and Lightweight Design

Motor Compatibility

2S LiPo / 6-Cell NiMH

• 540/550 Motor: Above 12T or less than 30,000 RPM @ 7.2V

3S LiPo / 9-Cell NiMH

• 540/550 Motor: Above 18T or less than 20,000 RPM @ 7.2V

Specifications

• Model: Brush-X60
• Voltage Input: 2–3S LiPo / 5–9 Cell NiMH
• BEC Output: 6V / 2A (Linear Regulator)
• Running Modes: Forward & Reverse / Crawler Mode
• Dimensions: 65 × 32 × 18 mm
• Weight: 39g

Package Includes

• 1 × Waterproof 60A Brush-X60 RTR ESC for RC Car
